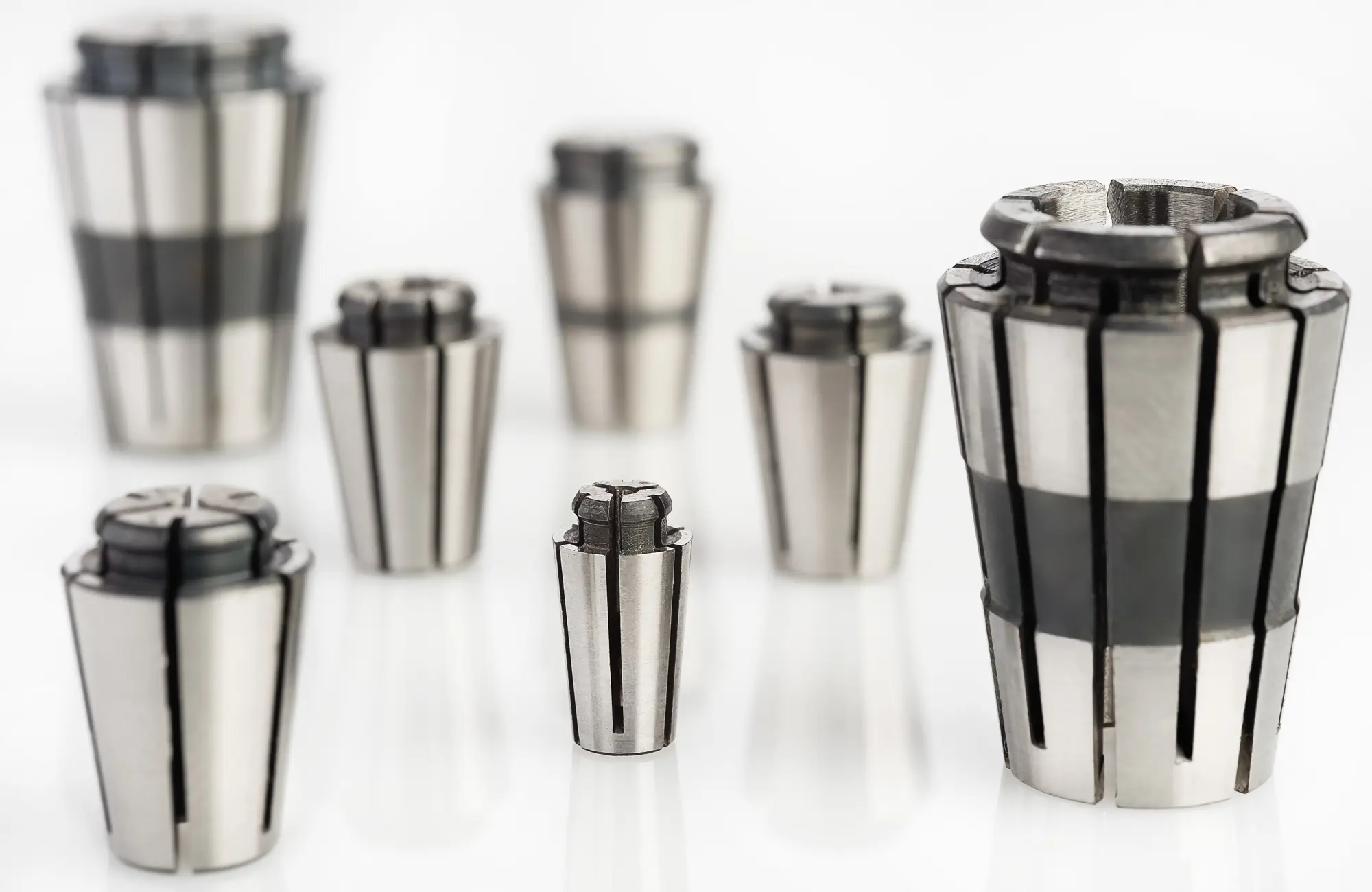

ETS/ETA Clamping Collets and Nuts

The ETS/ETA Clamping Collets and Nuts are an exclusive product of Tecnopinz.

We have created and patented these high-precision clamping devices to offer the highest-level manufacturing industry the most efficient solutions. Our clamping ETS / ETA collets and nuts are sold by our distributors worldwide as well under the "TGSX" and "Geniale" brands. In some markets, the geometry of our chucks is also referred to as "DNA." Our logo, laser-engraved on each individual chuck, allows you to immediately verify the authenticity of the product.

TEC Azien 091 (1)
TEC Prod 019

Our ETS / ETA Clamping Collets and Nuts, your advantages

The manufacturing process adheres to strict quality standards, and all mechanical operations are fully carried out within our company to guarantee precision throughout the entire supply chain.

The revolutionary geometry of our collets allows excellent concentricity values. For operations requiring the highest accuracy, Tecnopinz offers the Ultra Precision (UP) version, available for both ETS and ETA geometries, capable of operating with concentricity values lower than three thousandths of a millimeter (0.003 mm).

For any ER tool holder, simply install the corresponding ETS/ETA clamping collet along with our ETS nut. Replacement is easy, and thanks to our geometry, precision performance is very high.

To optimize the assembly of the ETS clamping collet and nut on the tool holder, Tecnopinz has developed a system that utilizes the elasticity of the collet to lock-in with the nut and form a single element for installation. This avoids abrasion of the surface and ensures a longer lifespan for the nut.

Thanks to axial pressure, the clamping collet centers perfectly within the tool holder. In ETA 6 and ETA 8 versions, our collets maintain excellent precision even at 100,000 rpm.

Our solution allows you to operate with tools at closer proximity than any other collet and nut clamping solution. This reduces vibrations and increases rigidity, significantly improving machining quality.

With specific solutions for managing cooling fluids, especially the "Fluid" and "Spray" options, our clamping collets and nuts provide better protection for the tool during machining, reducing tool wear. Increased precision coupled with savings in manufacturing.

Can’t find the diameter you need? Would you like a corrosion-resistant collet or one with unique geometric features? Tecnopinz is always ready to develop customized solutions thanks to our project management expertise. Contact us to start developing new ideas right away!

Conversion to the Self-Centering ETS / ETA System

It’s simple! Just purchase the corresponding ETS/ETA clamping collet and nut for the tool holder you are using.



Example of conversion:

ER 16 collet - ø3.00mm = ETS 16 collet - ø3.00mm



Example of conversion:

ER 16 collet - M22x1.50mm = ETS 16 collet - M22x1.50mm

Ultra Precision (UP) ETS / ETA Collets

In many industries, precision is synonymous with differentiation from the competition, greater competitiveness, and better customer satisfaction. To perform operations that require the highest possible precision, Tecnopinz offers the Ultra Precision (UP) version, available for both ETS and ETA geometries, and capable of achieving static concentricity values consistently lower than three thousandths of a millimeter (0.003mm).
